Whirlpool Washer Leaking Repair GuideIs your Whirlpool washer leaking? This clothes washer repair guide will walk you through the steps in repairing your leaking washer. These are the same steps I take in repairing washers professionally. So read each section carefully until your washer is repaired. Search by Model Number:
Search by Part Number:
It’s easy! Just find the model number of the appliance you are working on. Next, type it in to the model number box and it will take you to an illustrated parts diagram for your appliance. Then just simply choose the part you need from the diagram. If you need help finding your model number click here

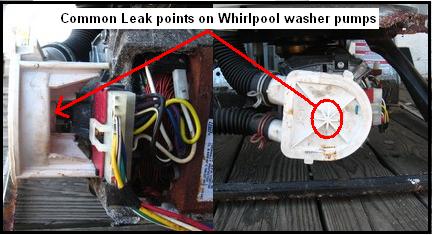

WATER PUMPThe water pump is the most common thing to cause a Whirlpool washer to leak. It is the very first thing I check when working on a Whirlpool washer leaking. First you need to take the case off. To do this, unplug the washer and take out the two screws that hold the control panel in place (one on each side, you may be able to see them in front, you may have to snap off two covers to see them or they may be on the back) then hinge the control panel up. Once its up, you should see a plug attached to the case with three wires - unplug it. Now remove the two clips on each side of the case under the control and lean the case over then slide it out of the way. Now start the washer and watch while the water is coming in. If the pump starts leaking replace pump. Water pumps can be purchased at AP WagnerTUB OVERFILLINGSometimes the tube that operates the water level control comes off and that will cause the tub to overfill. To find out if the tube is off, first unplug the washer and take out the two screws that hold the control panel in place (one on each side, you may be able to see them in front, you may have to snap off two covers to see them or they may be on the back) then hinge the control panel up. Once you have hinged the control panel up you will be able to see the water level control. There should be a tube attached to it, if not find the tube and reattach it. If the tube is attached you need to lean over the case to see if it has come off at the tub. To lean the case over, unplug the wires going to the case then remove the clips on each side of the tub. Then you should be able to lean the case over and look to see if the tube has come off the tub (the tube should be on back on the right hand side). If it’s off find it and reinstall it. If not, the problem is the water level control or the water valve. To check this first start and stop the washer repeatedly, the water should cut off every time you stop the washer. If not replace the water valve, if so replace the water level control. Water valves and water level controls can be purchased at AP WagnerHOSESCheck to see if the hoses have a hole in them. The hoses you need to check are the fill hoses and the drain hoses. If you don’t see the hoses leak, you may have to take off the case as I described above to see the other half of the drain hose. All hoses can be purchased at AP Wagner
